SEAL D.12
Code: FG1CE.12B

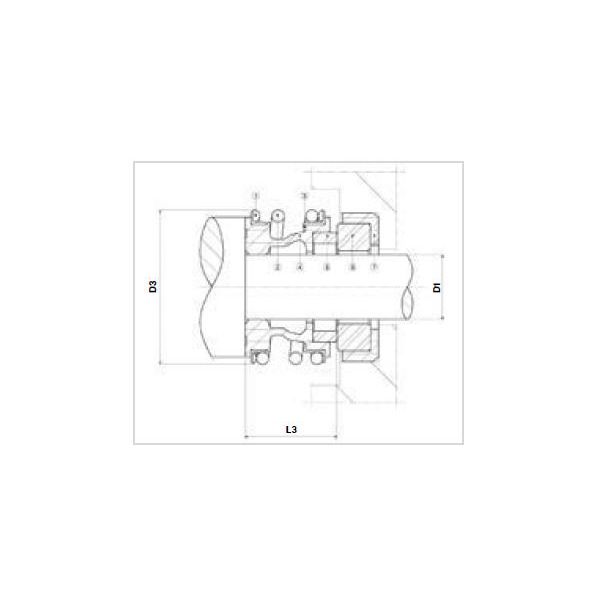

D1 12 / D3 22 / L3' 8.3
Seal: Graphite - NBR. AISI 316 steel spring. NBR gaskets.
Direction of rotation: Independent
LIMITS OF USE: p = 12 bar - v = 20 m/s - t=-30°C + 125°C
Above diameter 50, it is recommended to fit a counterface with slot, since the rotating pin allows greater hold than the stationary ring. Ask for a separate quotation.
Seals with different diameters from those listed can be supplied on request.
(€ 9.19 + VAT 22%)
Se sei interessato a questo prodotto o vuoi ordinarlo puoi scriverci per conoscere quando sarà nuovamente disponibile
